PU.200 Grundfos UPA 15-90 160 15/90 230v 98699677 Domestic Water Shower Taps Booster Pump
£150.00
£180.00 (inc. VAT)
-1721-p.jpg?v=44AF47EF-ECFA-4052-A879-3EF3FB61DCC8)

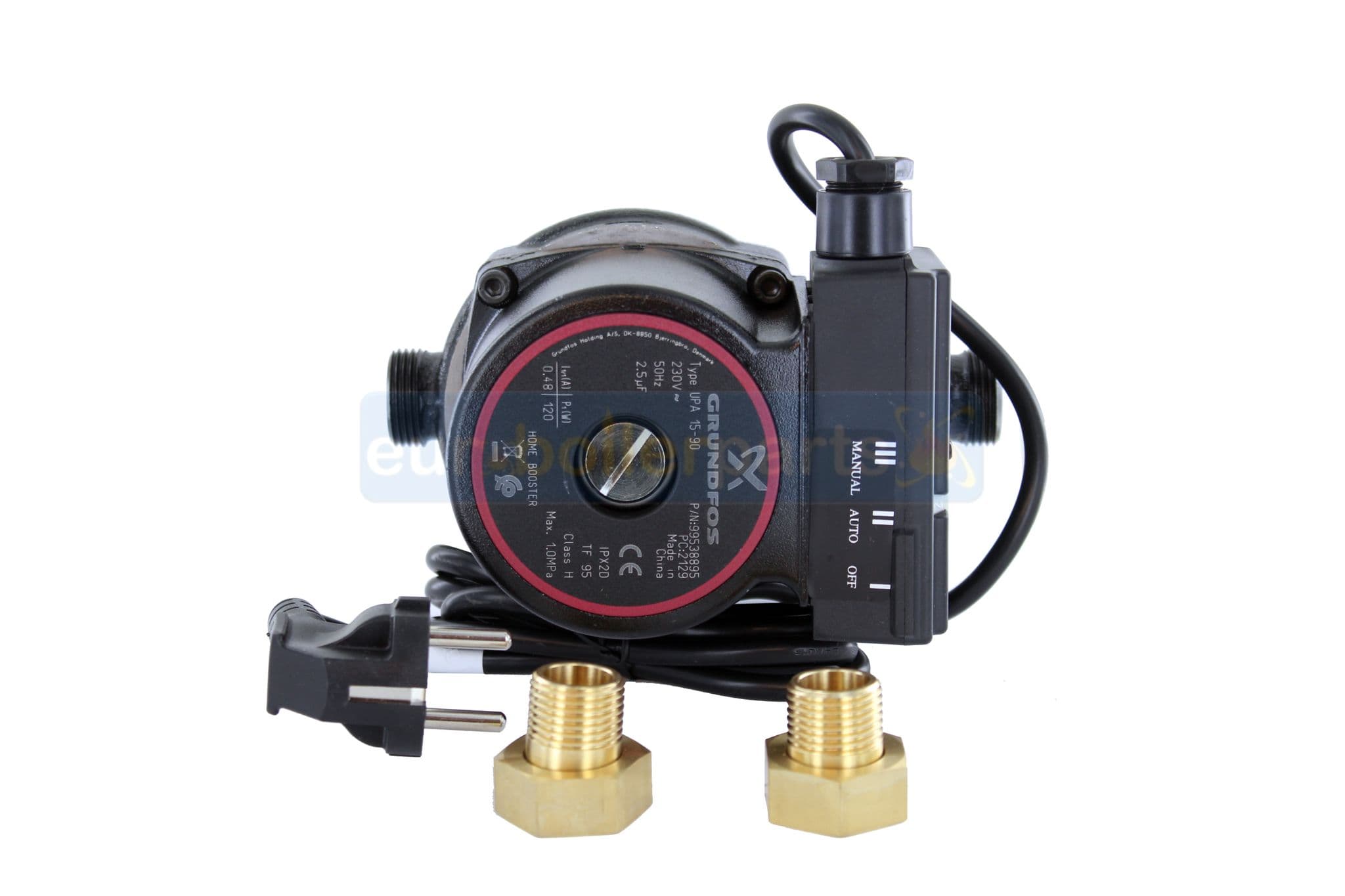

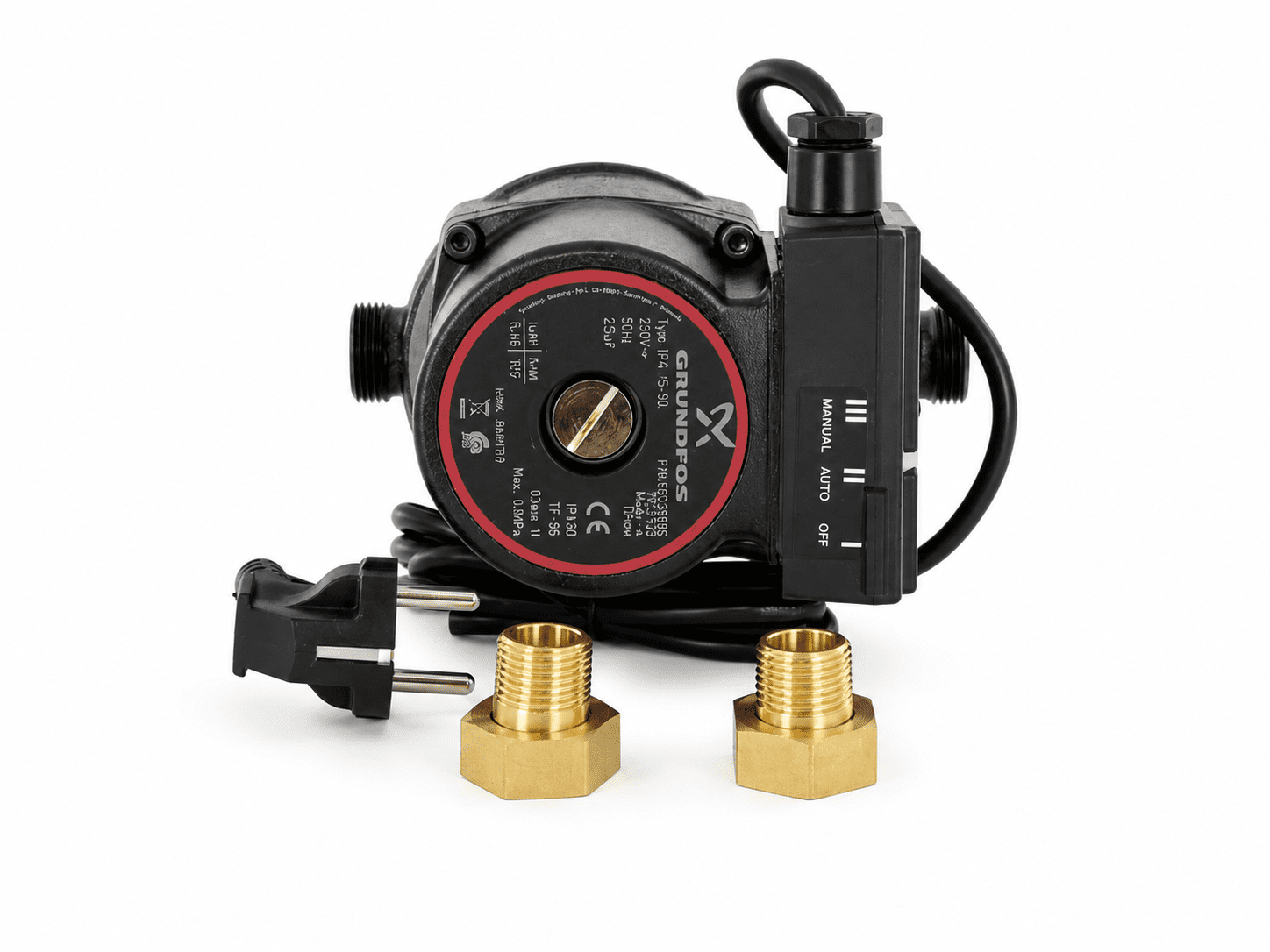

UPA 15-90 160
Product number 99538895
Suitable for
- Domestic hot water recirculation
UPA is a domestic, high efficiency in-line boosting pump, which increases water pressure to required levels at showers, taps and other points in your home.
| Product name | UPA 15-90 |
| Product No | 99538895 |
| EAN number | 5713830738429 |
Technical
| Speed no | 1 |
| Head max | 90 dm |
| TF class | 95 |
| Approvals on nameplate | CE,WEEE-UPA,MORO |
Materials
| Pump housing | Cast iron |
| Impeller | PP Composit |
Installation
| Max. ambient | 40 °C |
| Maximum operating pressure | 10 bar |
| Type of connection | G |
| Pipe connection | 3/4 |
| Pressure rating for connection | PN 10 |
| Port-to-port length | 160 mm |
Liquid
| Pumped liquid | Water |
| Liquid temperature range | 2 .. 95 °C |
| Selected liquid temperature | 60 °C |
| Density | 983.2 kg/m³ |
Electrical data
| Max. power input | 120 W |
| Mains frequency | 50 Hz |
| Rated voltage | 1 x 230 V |
| Current in speed 3 | 0.48 A |
| Capacitor size - run | 2.5 µF |
| Enclosure class (IEC 34-5) | X2D |
| Insulation class (IEC 85) | H |
| Built-in motor protection | NONE |
| Thermal protec | Impedance protected |
| Power plug | Schuko plug |
Controls
| Flow switch Yes/No | Y |
Others
| Gross weight | 3.77 kg |
| Shipping volume | 0.004 m³ |
