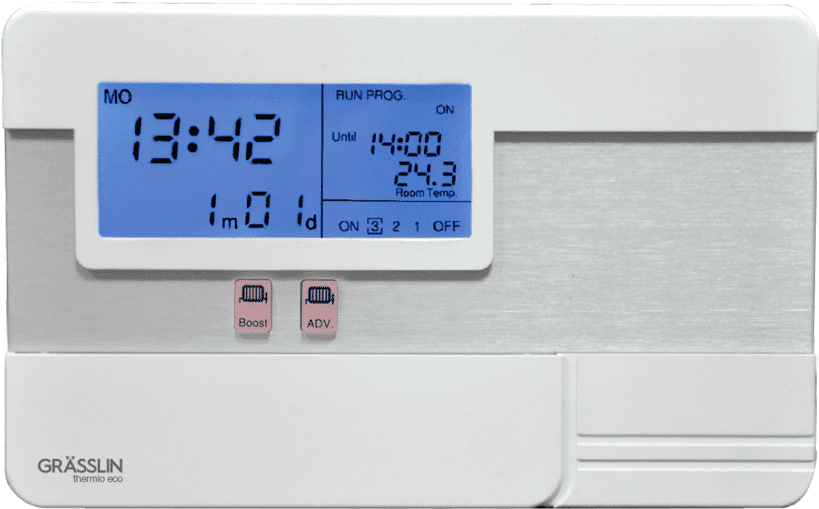

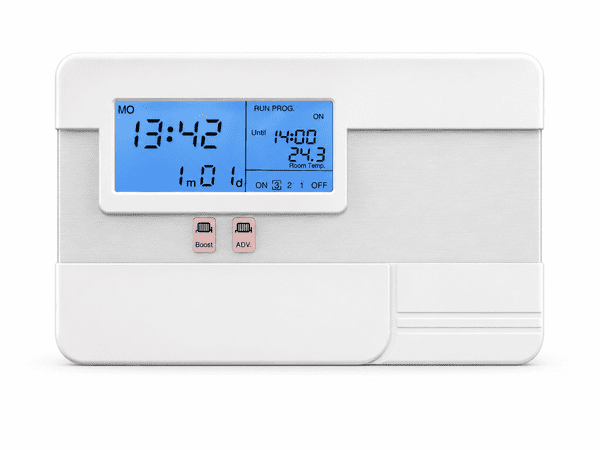

GL.210 Grasslin Thermio™ eco – Thermio™ eco C1 - Digital Programmer 1 Channel

PRODUCT DESCRIPTION

The thermio™ eco C1 is a digital programmer and enables simultaneous control of central heating and hot water through a single switching output. The integrated temperature control and frost protection function save costs as no additional room thermostat for the control of the central heating is required.

BENEFITS

• Convenient, automatic change from summer to winter time
• Easy and fast installation
• Up to 3 ON/OFF commands (selectable in pairs) per day provide a comfortable room climate
• Individual programs are saved and continue to be available even after a power failure
• Cost savings through integrated temperature controland frost protection function as no additional roomthermostat for the control of the central heating isrequired
• Increased comfort through wide temperature control range
• Convenient and simple reading of information thanks to the back-lit display, even in low-light conditions
• Simultaneous control of central heating and hot water through a single switching output
• Short-term and need-based heating through Boost function

APPLICATIONS

• Boiler
• combination boiler
• Domestic heating systems for heating and hot water
• Pump-controlled central heating systems
• Gravity heating systems

CIRCUIT DIAGRAMS

DOCUMENTS & DOWNLOADS

 Instructions-thermio-eco-C1
