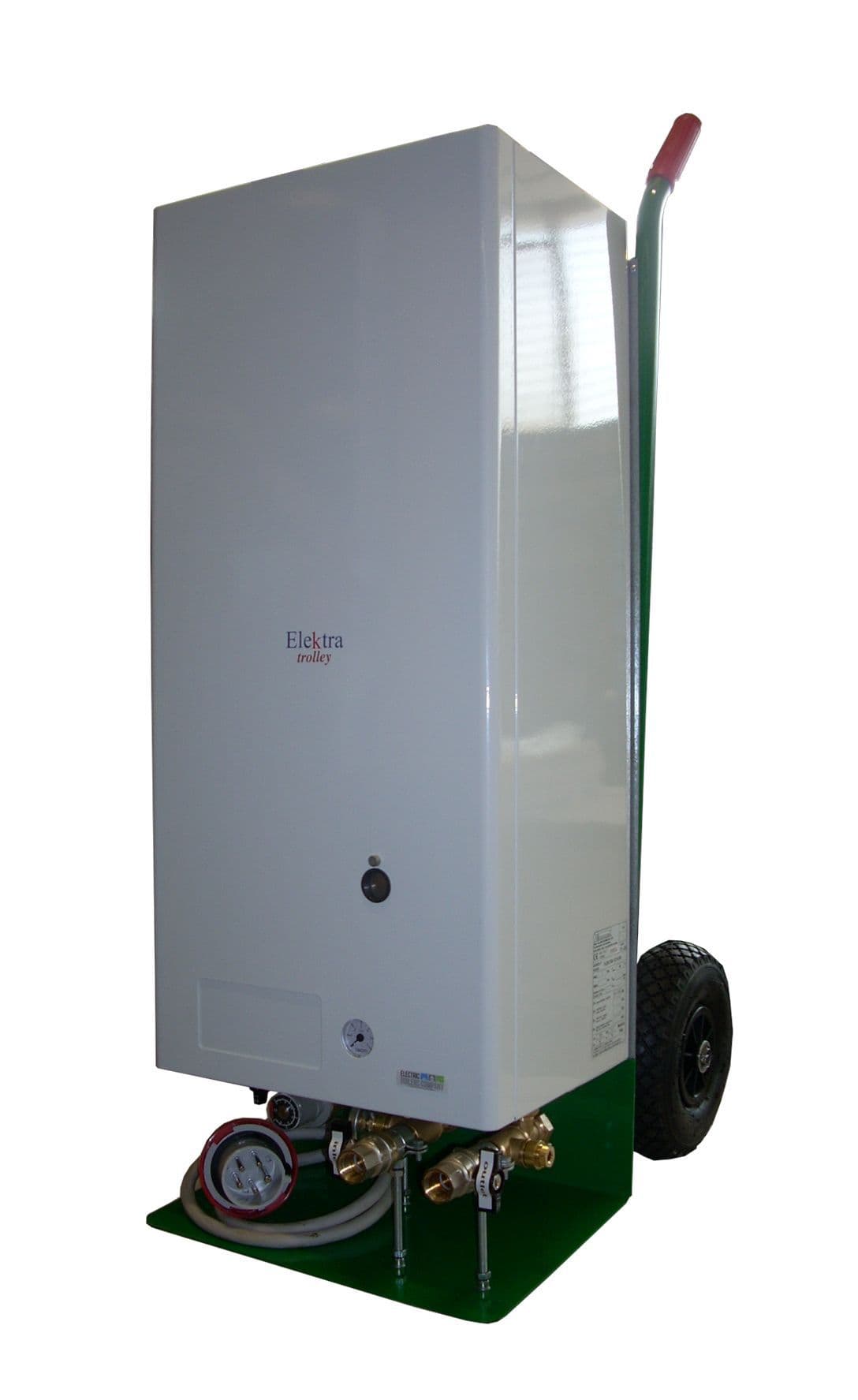

EK.TRL Elektra Trolley Portable Mobile Electric Heating Boiler Screeding 3kW, 8kW, 13kW, 16kW, 18kW
18kW Electric boiler.
Mobile/Portable electric boiler for screeding.
Mobile electric boilers designed for temporary, emergency, and flexible heating applications such as:
• Construction sites
• Emergency and backup heating
• Temporary heating installations
• District heating support
• Commercial and industrial facilities
Elektra 18kW N 016 TROLLEY 18 kW maximum electrical output Three-phase electrical supply: 400 V - 50 Hz.
Weight: 39 kg.
Electrical / heat power available at heating of 18 kW obtained by n°.3 Resistance group (n°.3 da 3x2 kW).
Maximum head available at the pump of 7 m.c.a.
Expansion vessel capacity of 10 liters.
Safety valve of heating circuit of 0,3 MPa (3 bar).
Maximum heating operating pressure: 0,25 MPa (2,5 bar).
Minimum operating pressure in the heating circuit: 0,06 MPa (0,6 bar). Maximum limit of thermal safety heating circuit - boiler body: 100°C.
Click here to download manual
