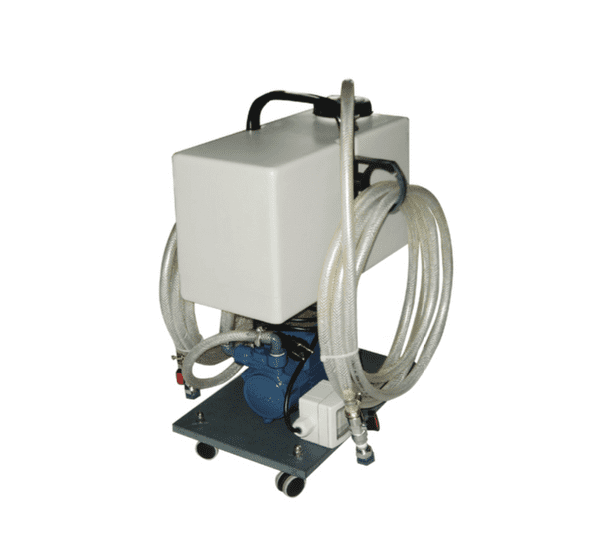

AQ.524 Solar Glycol Filling Pump 240v
Compact pump with a high hydraulic head for the filling of solar heating systems. Will also flush the system.
Product Features:-
| TANK | 20 Litres |
| MAX FLOWRATE | 18 Litres/min |
| IN/OUT CONNECTIONS | 1/2" |
| PRESSURE | 8 bar |
| MOTOR | 230V / 50Hz / 0.165kW |
| DEGREE OF PROTECTION | IP44 |
| WEIGHT | 15Kg |
| POWER | 0.5 kW |
| TEMPERATURE | 60°C |
| DIMENSIONS | H: 625mm L:470mm P:290mm |
MAIN FEATURES:-
Solar pump has been designed to offer the minimum amount of space, contained weight, easy handling and safety together with high performances of flow rate and prevalence. The structure is made of a unique tank in reinforced shock absorbent polypropylene, with a peripheral impeller pump, braided pipes, equipped with closing valves and flexi- ble connections to simplify the connection to the system.
After its use, or at least at the end of the day, ac- curately clean the pump with circulating water for at least 10 minutes to remove all debris.
To improve the pump operation, it could be add a small quantity of BP 100 in the recirculation. To avoid any corrosion and impeller blockages, eliminate more water as possible from the pump, from pipes and tank.
Solar pump, even if is designed with materials resistant to corrosion, IT IS NOT RE- SISTANT TO ACIDS ACTION.
ADVANTEGES
• High hydraulic head
• Compact
• Deaerator function
• Single-phase
BENEFITS
• Restores the correct functioning of solar panels
• Eliminates air bag during the system replenishment
• Complete replenishment of systems
• Solar panels replenishment also from the
ground floor
APPLICATION AND USE
The pump is suitable for conventional heating and cooling systems replenishment, and also for un- derfloor and above all solar systems.
